Diaphragms
Custom Rubber and Fabric-Reinforced Diaphragms:
Precision Flexible Barriers for Critical Applications
The Rubber Group specializes in custom-engineered rubber and fabric reinforced diaphragms that deliver precise, consistent performance in your most demanding fluid control, sensing, and actuation applications. With over 40 years of elastomer manufacturing excellence, our team designs and produces diaphragms that maintain integrity under extreme pressure cycles, aggressive media exposure, and challenging operating conditions – ensuring your systems function flawlessly when failure is not an option.
All of our diaphragms are made in the USA under ISO 9001:2015 quality controls with full material traceability.
Download Our Diaphragms Data Presentation
Standard vs. Custom Rubber Diaphragms:
When High-Performance Engineered Solutions Matter
Custom-engineered diaphragms become necessary when your application involves unusual geometry, aggressive chemicals, extreme temperatures, tight tolerances, high cycle counts, or regulatory documentation.
Working on an application that calls for more than a standard diaphragm? Every custom diaphragm from The Rubber Group starts with a thorough review of your unique application needs and collaboration with your team regarding the challenges that need to be solved. From there, we can recommend the right compound, reinforcement, geometry, and manufacturing process.
The Rubber Group team is ready to engineer the right diaphragm for your application. Let’s start a conversation about your diaphragm specs and needs:

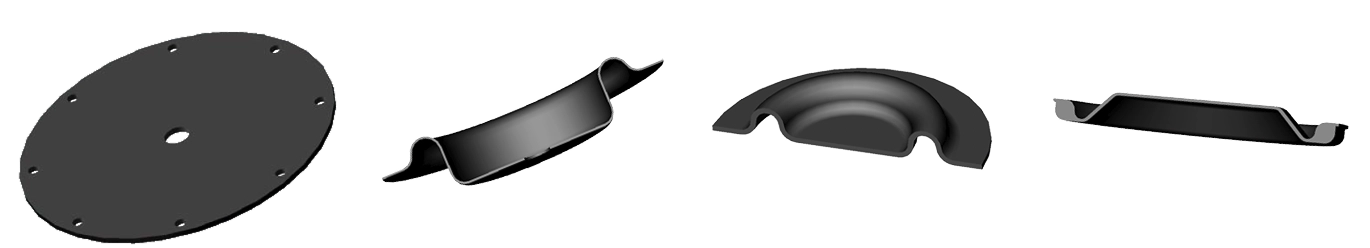

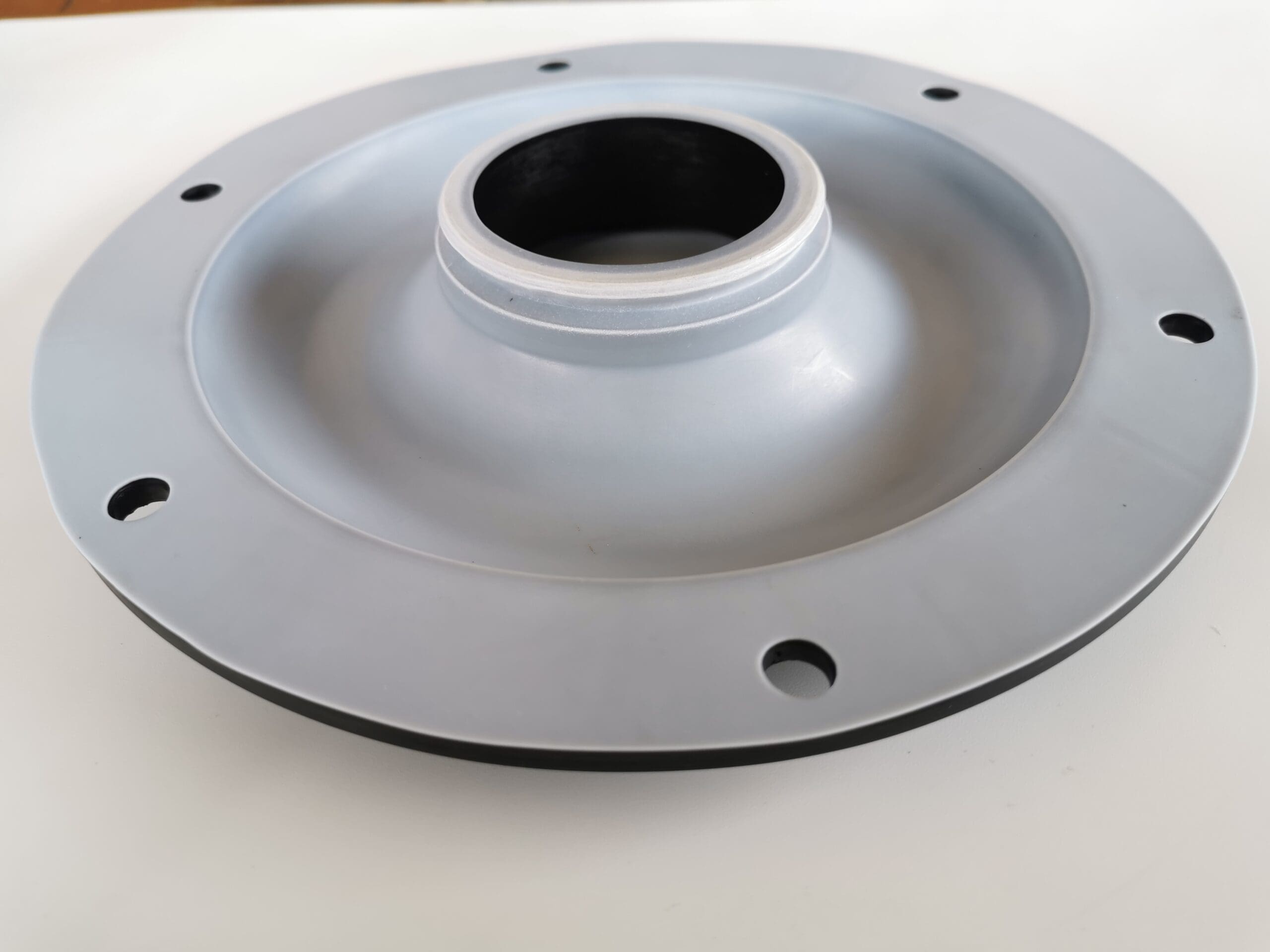

Custom Diaphragm Types We Manufacture
Convoluted Diaphragms (Deep Draw, Top Hat) – For higher-stroke pump, valve, and pressure-control applications.
Fabric-Reinforced Diaphragms – For higher burst strength, dimensional stability, and demanding pressure cycles.
Flat Diaphragms – For low-stroke, high-precision sensing and pressure response applications.
Piston-Style Diaphragms – For pressure regulators, boosters, and assemblies that require rigid support.
Rolling Diaphragms (Drop Center, Pie Pan) – For long linear travel with low friction in actuators, cylinders, and control systems.
What is an Industrial Rubber Diaphragm?
An industrial diaphragm is a flexible elastomeric membrane that separates two media – such as a fluid and air, or two distinct fluids – and converts pressure changes into mechanical movement, or mechanical movement into pressure control. Made of a flexible rubber or rubber-fiber blend, a diaphragm functions as both a seal and an actuating element.
Used in pumps, valves, pressure regulators, sensors, and actuators, the diaphragm must flex repeatedly without leaking, cracking, swelling, or losing shape. The diaphragm's elastomer compound, durometer, and geometry determine its chemical resistance, temperature tolerance, and fatigue life under repeated cycling.
Learn about the engineering, design, and materials that are essential to sourcing the best rubber diaphragm solutions from the experts at The Rubber Group on our What Is a Diaphragm resource page.

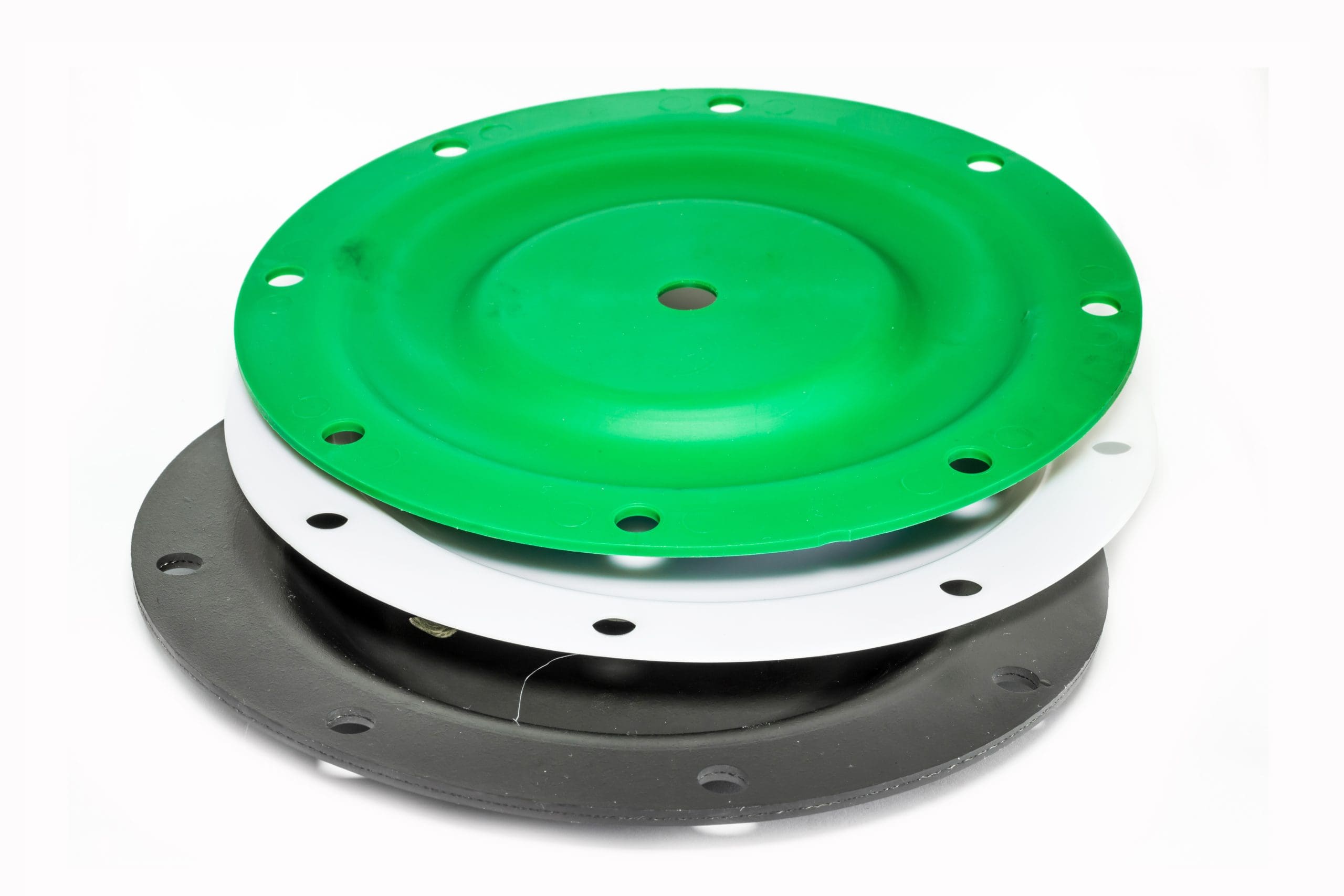

Diaphragm Materials

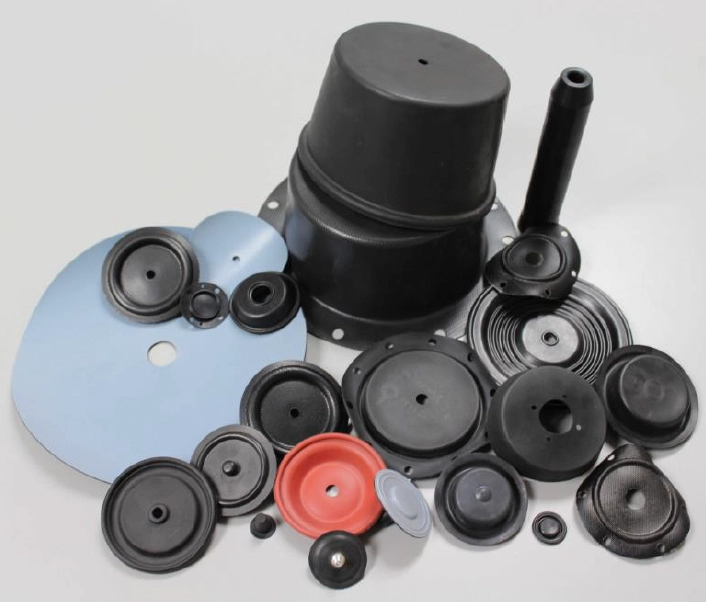

Premium Elastomer Compounds
Matched to Your Media, Temperature, and Cycle Life
The right elastomer is the foundation of diaphragm performance. We select or formulate compounds based on the media the diaphragm contacts, the operating temperature, required flexibility, compression set, pressure cycling, and expected service life.
EPDM - For excellent resistance to water, steam, weathering, and many chemical environments. Common in water management, sanitary, and food processing applications
Nitrile (NBR) - For outstanding resistance to oils, fuels, and hydraulic fluids. Common in pneumatic actuators and hydrocarbon-exposed systems
Neoprene - Balanced resistance to moderate chemicals, oils, and weathering for general industrial applications
FKM (Viton®) - Exceptional chemical resistance and high temperature performance up to 500°F for aggressive chemicals and elevated temperatures
Silicone - For wide temperature ranges (-120°F to +450°F) flexibility, and biocompatibility in medical and food applications
HNBR - Enhanced heat, oil, and chemical resistance for demanding applications in elevated temperatures
Butyl - Superior gas impermeability for vacuum applications and excellent resistance to ketones and alcohols
FFKM (Perfluoroelastomer) - Ultimate chemical resistance for the most aggressive media where other elastomers fail
And MORE!
Fabric-Reinforced Diaphragm Options
for Higher Pressure and Dimensional Stability
When rubber alone cannot meet the pressure, cycle-life, or dimensional requirements of the application, fabric reinforcement adds strength and stability. We bond textile reinforcement into the rubber construction to improve burst resistance, control stretch, and support long-term flex performance.
Polyester - Helps control stretch and maintain dimensional stability under pressure. Often used when the diaphragm needs consistent shape and repeatable movement
Nylon - Provides strength and flex-fatigue resistance for applications with repeated cycling or dynamic movement
Aramid (Kevlar®) - Adds high tensile strength with low weight. Used in applications with elevated pressure or demanding mechanical loads
Aramid (Nomex®, Conex®) – Supports applications exposed to higher temperatures while maintaining flexibility during repeated movement
Fiberglass - Helps maintain dimensional stability in high-temperature environments where thermal resistance is a primary requirement
Cotton - Bonds well with rubber and offers flexibility for specialized diaphragm constructions where traditional textile reinforcement is preferred
Hybrid Fabrics - Custom-engineered reinforcement combinations for optimized performance
Multi-Ply Constructions - Layered fabric configurations for extreme pressure and exceptional service life
Specialized Weaves - Application-specific fabric patterns for balanced strength and flexibility
Rubber Diaphragm Performance Characteristics
High-Flex Formulations - Engineered for millions of cycles without cracking or fatigue
Low Hysteresis Designs - Minimized energy loss and heat build-up during cycling
Pressure-Optimized Constructions - Configurations for pressure ranges from vacuum to 1,000+ PSI
Chemical-Resistant Compounds - Specialized formulations for specific media compatibility
FDA & USP Class VI Materials - Compliant compositions for food, beverage, and medical applications
Temperature-Resistant Options - Materials optimized for extreme heat or cold environments
Low-Friction Surfaces - Specialized finishes for improved dynamic response
Custom Profile Geometries - Molded features including beads, lips, and reinforced mounting zones
Industry-Specific Rubber Diaphragm Applications
Fluid Control & Pump Systems
Our precision-engineered diaphragms deliver reliable performance in critical fluid handling applications:
Diaphragm Pumps - Robust, long-life diaphragms for AODD (air-operated double diaphragm) pumps handling chemicals, slurries, and sanitary fluids
Metering Pumps - High-precision diaphragms for accurate chemical dosing and injection system
Valve Actuators - Responsive diaphragms for pneumatic valve control in process industries
Water Management - Durable solutions for water treatment, filtration, and residential water systems
Pressure Regulators - Sensitive diaphragms providing precise pressure control in gas and liquid system
Pulsation Dampeners - Flexible barriers absorbing pressure spikes in hydraulic and process systems
Process Industry Applications
Engineered solutions for chemical processing, oil & gas, and industrial production:
Chemical Processing - Chemical-resistant diaphragms for aggressive media handling and corrosive environments
Oil & Gas Equipment - High-pressure diaphragms for wellhead control, pipeline regulation, and refinery applications
Industrial Automation - Precise response diaphragms for pneumatic controls and positioning systems
Compressor Components - Durable diaphragms for gas handling and compression equipment
Bulk Material Handling - Robust designs for cement, powder, and granular material processing
Tank Protection - Rupture-resistant breather diaphragms preventing over/under pressurization
Medical & Pharmaceutical Applications
Ultra-clean diaphragm solutions for healthcare and life science applications:
Medical Devices - USP Class VI diaphragms for diagnostic equipment and therapeutic devices
Pharmaceutical Production - High-purity barriers for drug manufacturing and processing
Laboratory Equipment - Precision diaphragms for analytical instruments and research apparatus
Respiratory Equipment - Life-critical components for ventilators and breathing apparatus
Dialysis Systems - Reliable fluid control in renal therapy equipment
Sterilization Equipment - Chemical and heat-resistant diaphragms for autoclave and sterilization systems
Food & Beverage Processing Applications
Sanitary diaphragm solutions meeting stringent food safety requirements:
Beverage Processing - FDA-compliant barriers for dairy, juice, and carbonated beverage production
Food Manufacturing - Sanitary diaphragms for ingredient handling and processing systems
Brewing & Distilling - Specialized designs for fermentation, filtration, and process control
CIP/SIP Systems - Cleaning-compatible diaphragms withstanding sanitizing agents and steam
Filling Equipment - Precision fluid control for packaging and bottling operations
Homogenizers & Mixers - High-pressure applications for food texture development

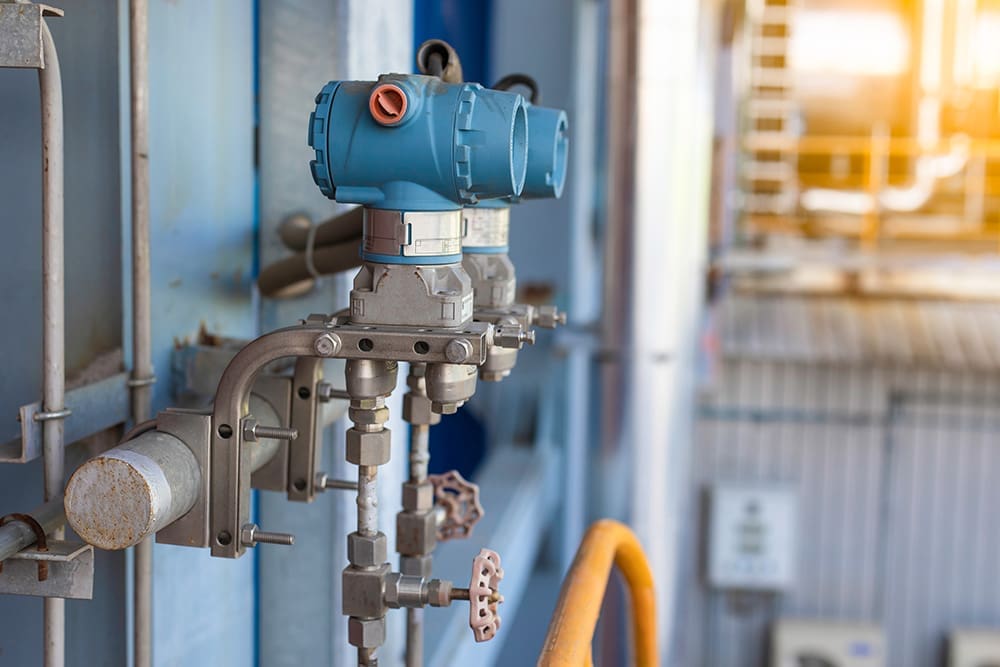

Instrumentation & Sensing Applications
Sensitive diaphragms for measurement and control applications:
Pressure Transducers - Ultra-responsive barriers for accurate pressure measurement
Flow Controls - Precise diaphragms regulating fluid movement in process systems
Level Indicators - Reliable detection of fluid levels in tanks and vessels
Pneumatic Controls - Signal transmission diaphragms for pneumatic control systems
Differential Pressure Devices - Specialized designs for measuring pressure differences
Environmental Monitoring - Weather-resistant barriers for outdoor sensing applications
Industries We Serve
At the Rubber Group, we manufacture and supply standard and custom rubber diaphragms for a wide range of demanding industries, specifications, and regulations.
Aerospace & Defense - Precision diaphragms for actuation systems, fuel and fluid control, and sensing applications in aerospace and defense platforms. Manufactured under AS9100 quality controls. ITAR registered.
Fluid & Process Control - Diaphragm pumps, metering pumps, pump systems, valve actuators, pressure regulators, and pulsation dampeners for chemical, slurry, and sanitary fluid handling.
Medical & Pharmaceutical - USP Class VI and FDA-compliant diaphragm materials for diagnostic devices, laboratory equipment, respiratory systems, dialysis, and pharmaceutical production. FDA-registered medical device manufacturing and IQ/OQ/PQ documentation available.
Food, Beverage & Water - FDA-compliant barriers for beverage processing, dairy, brewing, CIP/SIP systems, and filling equipment meeting stringent food safety requirements.
Fluid & Process Control - Chemical processing, oil & gas equipment, industrial automation, compressor components, and bulk material handling for demanding production environments.
Instrumentation & Sensing - Ultra-responsive diaphragms for pressure transducers, flow controls, level indicators, differential pressure devices, and environmental monitoring
Why Choose The Rubber Group for Your Diaphragms
Since 1986, we’ve helped OEMs and manufacturers solve diaphragm challenges involving pressure cycling, chemical exposure, tight tolerances, fabric reinforcement, and compliance documentation. Our in-house mold making, custom compound formulation, and elastomer engineering experience allow us to support the part from early design through production.
Full Certification Coverage - Engineered for millions of cycles without cracking or fatigue
Validation-Ready - PPAP and IQ/OQ/PQ documentation available for automotive, pharmaceutical, and medical device customers
Design Consulting - We analyze operating conditions, identify failure risks, and recommend construction changes before they become field problems
Frequently Asked Questions
The most common causes of industrial diaphragm failure or leaks are chemical degradation (wrong compound for the media), fatigue cracking (under-reinforced construction or stress-concentrating geometry), extrusion (inadequate bead or mounting design), thermal hardening or softening (operating outside the compound's temperature range), wicking (fluid migrating through the fabric layer via capillary action, particularly at cut edges under pressure), and – in fabric-reinforced diaphragm designs – delamination between the rubber and textile layers when bonding is inadequate or the reinforcement restricts flex beyond design limits. Diaphragm failure prevention starts with a thorough application review before engineering begins and compound and construction are selected. The Rubber Group team can help you with custom diaphragm designs, diaphragm prototyping, as well as diaphragm bench testing in the development of solutions that help maximize durability and service life.
